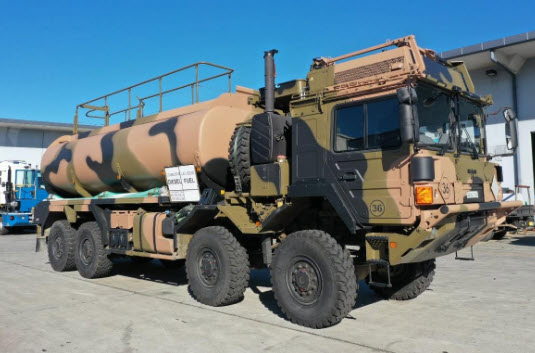

Concept model for a deployable bulk fluid distribution system using ExtendSim. A good example of Item and Rate library blocks being used together. Simulates a Defence littoral area of operations, forward operating area. Fuel is delivered by tanker ships via 1.5km pipeline to large storage near coast. Large tanker trucks are filled from large storage and then deliver fuel to field bulk storage where F-34 aviation fuel is used for helicopter operations and F-54 diesel fuel is used for truck missions. Large storage near coast is resupplied by tanker ship when fuel level reaches a trigger level threshold.
